RFID Screw Tag
DR SM 16

• Dimensions: M16 Screw
• Chip: Alien H3
• Material: 304 Steel
• Reading Distance (RFID) (*): 1.2-2 meters (on metal)
• Protection Grade: IP68
• Storage Temperature: -40°С to +150°С
• Operation Temperature: -40°C to +100°C
• Application: Tag for mounting by screws to metallic assets.
• This ultra-rugged UHF RFID tag for metal is an excellent solution for a wide range of applications, from tracking of surgical tools and trays, to process management in automotive manufacturing and identification of metallic assets in the oil and gas, construction and mining sectors.

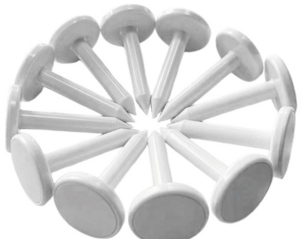

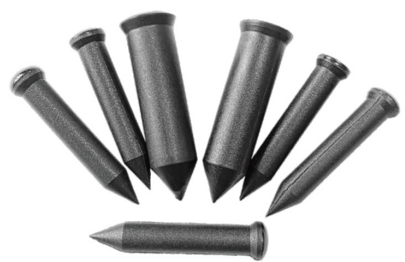

RFID Nail Tag
DR N 7/12/20/22/24/28

• Dimensions: Φ7mm/Φ12mm/Φ20mm/Φ22mm/Φ24mm/Φ28mm
• Chip: LF 125KHz, HF13.56MHz or UHF 860-960MHz
• Material:PC/ABS
• Protection Grade: Ip58
• Reading Distance (RFID) (*): 0.15-0.3 Meters
• Color: Black (White, Green)
• Application: Applicable to a variety of non-metallic items management, security inspection. What’s more, packaging logo, vehicle identification, park management, tree management, and other asset identification management system.

RFID Screw Tag
DR SM 18

• Dimensions:Dia18mm, Thickness: 11mm
• Chip: Alien Higgs-3 / NXP UCODE8
• Material:304 Steel
• Reading Distance (RFID) (*): 0.35-0.9 Meters (on metal)
• Protection Grade: IP68
• Storage Temperature: -50℃ to +260℃ (Withstand 300°С for 100 hours)
• Operation Temperature: -40°C to +150°C
• Application: tag for mounting by screws to metallic assets. This ultra-rugged UHF RFID tag for metal is an excellent solution for a wide range of applications, from tracking of surgical tools and trays, to process management in automotive manufacturing and identification of metallic assets in the oil and gas, construction and mining sectors.

SCREW & NAIL
