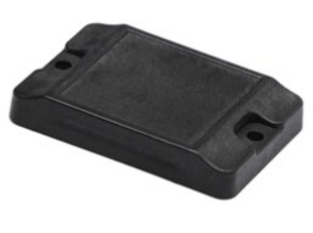

Construction Tag Embedded in Concrete
DR 4631 EC

• Dimensions: 46.5x31.5x7.5mm, Hole: dia3.6mmx2
• Chip: Alien Higgs-3 (Available in Impinj Monza and NXP U code)
• Material: PPS
• Reading Distance (RFID) (*): 4-6.5 meters (on-metal)
• Embedded in concrete 5cm deep: Read 2.2 meters
• Embedded in concrete 10cm deep: Read 2 meters
• Working Temperature: -25°С to +100°С
• Protection Grade: IP68
• Application: RFID tag in construction designed to be mounted on metal and embedded in concrete, can be used to uniquely identify building materials improving the management of construction processes.

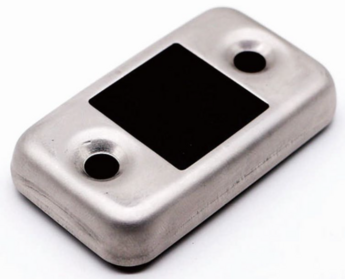

Tag for Heavy Weight Resistant
DR W 7242

• Dimensions: 74x42mm, Thickness: 12mm
• Chip: Alien Higgs-9 / Monza 6
• Material: 304 Steel + PPS
• Reading Distance (RFID) (*): 2-3 meters (on-metal)
• Working Temperature: -40°С to +220°С
• Protection Grade: IP65
• Color: Black/Yellow
• Weight Resistance: 1500KG
• Application: Geographic Recognition, Warehouse Management, Vehicle fleet management; Truck Management, Heavy Equipment Management.

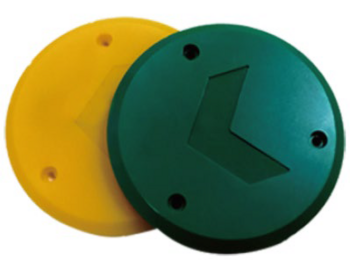

Tag for Heavy Weight Resistant
DR W 80
• Dimensions:Dia:80mm, T:5mm
• Chip: Impinj Monza R6-P or compatible chip model
• Material: Modified polyurethane resin
• Reading Distance (RFID) (*): 3-6 meters (on-metal)
• Working Temperature: -40°С to +120°С
• Protection Grade: IP68
• Weight Resistance: 3000KG
• Application: Geographic Recognition, Warehouse Management, Vehicle fleet management; Truck Management, Heavy Equipment Management

Construction Tag Embedded in Concrete
DR 5147 EC

• Dimensions: 51x47x10mm, Hole: dia5mmx2
• Chip: Impinj Monza R6-P
• Material: Engineering plastics
• Reading Distance (RFID) (*): 5-10 meters (on-metal)
• Embedded in concrete 5cm deep: Read 1.5-4 meters
• Embedded in concrete 10cm deep: Read 0.8-2 meters
• Working Temperature: -40°С to +85°С
• Protection Grade: IP68
• Application: RFID tag in construction designed to be mounted on metal and embedded in concrete, can be used to uniquely identify building materials improving the management of construction processes.

TAG FOR HEAVY WEIGHT RESISTANT
